Defining Screen Parameters
When an application is launched with a URL Scheme, it can reference the query string values included in the scheme. When launching an application with a scheme, you can pass necessary data or activate specific features.
Passing Data with Parameters
When launching an application, you can add key-value pairs of data to the URL in the form of parameters.
For example, it looks like this:
granite://{serviceName}?key1=value1&key2=value2In this example, an application named test-app can be launched, and name and age data can be passed.
granite://test-app?name=tom&age=10Getting Parameter Values
Using the useParams hook, you can easily get the query string values from the URL when the application is launched. This hook returns the value corresponding to a specific key through the useParams method.
Additionally, by using the validateParams option, you can define and validate the parameters required for the screen. Refer to the example below.
import { createRoute } from '@granite-js/react-native';
import { View, Text } from 'react-native';
// Define the screen corresponding to the root path ('/')
export const Route = createRoute('/', {
component: Index,
validateParams: (params) => ({
// Set 'name' key as required and convert its type to string.
name: params.name as string,
// Set 'age' key as required and convert its type to number.
age: params.age as number,
}),
});
function Index() {
// Get the query string value for the 'name' key.
const { name, age } = Route.useParams();
// Alternatively, you can get values from a specific path like this:
// const { name, age } = useParams({ from: "/" });
return (
<View>
<Text>Name: {name}</Text>
<Text>Age: {age}</Text>
</View>
);
}Validating Parameters
Parameters that must be included can be validated using the validateParams option.

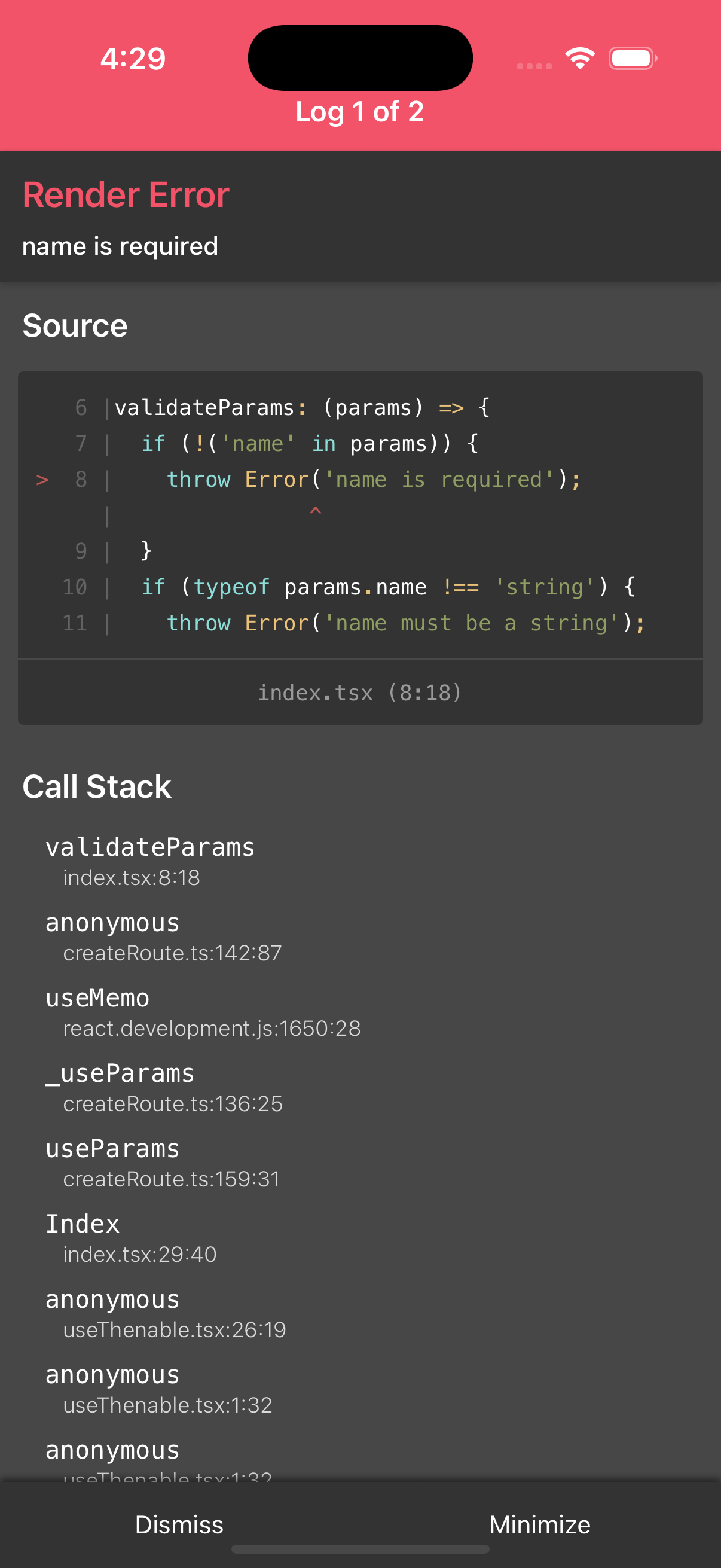

For example, the example code below will throw an error if the name parameter is missing.
Therefore, use the validateParams option to ensure that required parameters are not omitted.
import { createRoute } from '@granite-js/react-native';
import { View, Text } from 'react-native';
export const Route = createRoute('/', {
component: Index,
validateParams: (params) => {
if (!('name' in params)) {
throw Error('name is required');
}
if (typeof params.name !== 'string') {
throw Error('name must be a string');
}
if (!('age' in params)) {
throw Error('age is required');
}
if (typeof params.age !== 'number') {
throw Error('age must be a number');
}
return params as {
name: string;
age: number;
};
},
});
function Index() {
const { name, age } = Route.useParams();
return (
<View>
<Text>Name: {name}</Text>
<Text>Age: {age}</Text>
</View>
);
}import { createRoute } from '@granite-js/react-native';
import { View, Text } from 'react-native';
import * as v from 'valibot';
export const Route = createRoute('/', {
component: Index,
validateParams: (params) => {
return v.parse(
v.object({
name: v.string(),
age: v.number(),
}),
params
);
},
});
function Index() {
const { name, age } = Route.useParams();
return (
<View>
<Text>Name: {name}</Text>
<Text>Age: {age}</Text>
</View>
);
}import { createRoute } from '@granite-js/react-native';
import { View, Text } from 'react-native';
import { z } from 'zod';
export const Route = createRoute('/', {
component: Index,
validateParams: (params) => {
return z
.object({
name: z.string(),
age: z.number(),
})
.parse(params);
},
});
function Index() {
const { name, age } = Route.useParams();
return (
<View>
<Text>Name: {name}</Text>
<Text>Age: {age}</Text>
</View>
);
}Transforming Parameter Values
The createRoute.parserParams option allows you to convert string values passed as query strings to your desired types. By default, useParams automatically converts most simple types like numbers, strings, arrays, and objects, so you rarely need to override the parser directly. However, when you need to use complex data structures or want to remove specific params, you can define a parser yourself to convert them to the desired types.
The result of the parserParams option is transformed before being passed to the validateParams option.
Type Conversion Using the Default Parser
Using the default parser, query string values are automatically converted to appropriate types. The example below shows how to convert parameters to their correct types.
import { createRoute } from '@granite-js/react-native';
import { View, Text } from 'react-native';
// Example URL: granite://test-app?name=tom&age=10&arr=1,2,3&obj={\"name\":\"jane\",\"age\":20}
export const Route = createRoute('/', {
component: Index,
validateParams: (params) => ({
// Parameter values are automatically converted to the correct types by the default parser
name: params.name as string, // Converts to string
age: params.age as number, // Converts to number
arr: params.arr as string[], // Converts to array
obj: params.obj as { name: string; age: number }, // Converts to object
}),
});
function Index() {
const { name, age, arr, obj } = Route.useParams();
return (
<View>
<Text>
Name: {name}, Type: {typeof name}
</Text>
<Text>
Age: {age}, Type: {typeof age}
</Text>
<Text>
Array: {JSON.stringify(arr)}, Type: {typeof arr}
</Text>
<Text>
Object: {JSON.stringify(obj)}, Type: {typeof obj}
</Text>
</View>
);
}Overriding the Parser
The parserParams option allows you to define and use a custom function to transform query parameters that are difficult to handle with the default parser. For example, the code below shows how to remove a specific parameter (referer) and process the remaining parameters with the default parser.
import { createRoute, defaultParserParams } from '@granite-js/react-native';
import { View, Text } from 'react-native';
// Example URL: granite://test-app?name=tom&age=10&referer=https://google.com
export const Route = createRoute('/', {
component: Index,
// Remove a specific parameter and process the rest with the default parser
parserParams: (params) => {
const { referer, ...rest } = params;
return defaultParserParams(rest);
},
validateParams: (params) => {
// Here, `params` is the value transformed by the parserParams function.
// That is, `referer` is passed after being already removed.
return {
name: params.name,
age: params.age,
} as {
name: string;
age: number;
};
},
});
// Using parameters in the component
function Index() {
const { name, age } = Route.useParams();
return (
<View>
<Text>
Name: {name}, Type: {typeof name}
</Text>
<Text>
Age: {age}, Type: {typeof age}
</Text>
</View>
);
}Note on Duplicate Parameters
If a parameter with the same name is used multiple times, its value will be returned as an array. For example, if the age parameter is included twice, it will be processed as follows:
// Scheme: `granite://test-app?name=tom&age=10&age=20`
const params = useParams({
from: "/",
});
// params
{ name: 'tom', age: [10, 20] }
